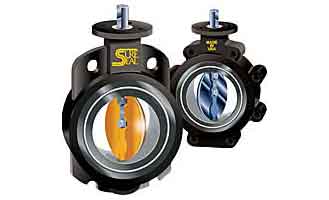

Butterfly Valve

Butterfly Valves are typically lower cost and lighter weight than other valves. It is a quarter-turn valve like the Lined Ball Valve

Sure Seal LBV Series Ball Valves allow direct actuator mounting, have a separate ball and stem design, which allows the ball to float, while maintaining low pressure sealing by using a pre-loaded seat. They have a face-to-face standard take out dimension and the primary seal between body halves is a soft joint backed up by a metal-to-metal body joint. Sure Seal's PFA liner is locked into machined dovetails and slots in the body halves and cast holes in the ball; also, they have live loaded packing glands that are externally adjustable. Lockable handles are standard.

Butterfly Valve Series
- 500/522
- 600/622
- 890/893
- 899/892

Butterfly Valve Material of Construction
- Stainless Steel
- Ductile Iron
- Aluminium
- Aluminium Bronze

Butterfly Valve Size
- 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24", up to 42"

Butterfly Valve Seat Material
- EPDM
- Buna N
- Black Nitrite
- White Nitrite
- Viton A
- Silicone
- TFE/EPDM
- TFE/Nitrile
- TFE/Viton

Butterfly Valve Options
- Teflon coated
- Corrosion resistant platings

Butterfly Valve Operator
- 10 Position Steel Handle
- 10 Position 316 SS Handle
- CI Gear Operator
- SS Gear Operator
- Padlock 10 Position Steel Handle

To get information or receive a quote fill out our Inquiry Form or email us at sales@cse-ipg.com.
