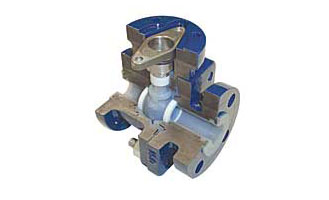

Lined Ball Valve

Sure Seal LBV Series Ball Valves allow direct actuator mounting, have a separate ball and stem design, which allows the ball to float, while maintaining low pressure sealing by using a pre-loaded seat. They have a face-to-face standard take out dimension and the primary seal between body halves is a soft joint backed up by a metal-to-metal body joint. Sure Seal's PFA liner is locked into machined dovetails and slots in the body halves and cast holes in the ball; also, they have live loaded packing glands that are externally adjustable. Lockable handles are standard.

Lined Ball Valves conform to the following specifications: ASME B16.5, ASME B16.10, ASME B16.42, ISO 5211, and MSS-SP25.

Lined Ball Valve Body Material
- Ductile Iron
- Stainless Steel

Lined Ball Valve Body Liner
- PFA
- Other

Lined Ball Valve Ball
- PFA Lined Carbon Steel
- PFA Lined Stainless Steel

Lined Ball Valve Size
- 1", 1-1/2", 2", 3", 4", 6"

Lined Ball Valve Operator
- Bare Stem
- Lever Locking Handle
- Manual Gear
- Double Acting Pneumatic Actuator
- Fail Open Pneumatic Actuator
- Fail Closed Pneumatic Actuator
- Electric Actuator
- Hydraulic Actuator

Lined Ball Valve Option
- Solenoid Valve
- Filter Regulator w/Gauge
- Manual Override

Lined Ball Valve Accessory
- Pneumatic Positioner
- Electro Pneumatic Positioner
- Proximity Switch Box
- Micro Limit Switches

To get information or receive a quote fill out our Inquiry Form or email us at sales@cse-ipg.com.
