Bottom Loading Coupler

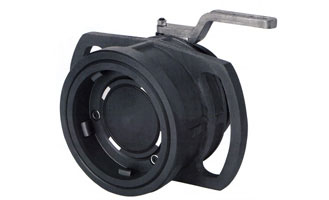

bottomcoupler picture

Bottom Loading Coupler mates with all 4" bottom loading adaptors built in accordance with API RP-1004 requirements.

Pressure rated at 300 psi (20 bar) in the closed position.

Self Aligning five cam design resists side forces and ensures a tight connection to truck adaptor.


Bottom Loading Coupler Material of Construction
- Aluminum

Bottom Loading Coupler Seals
- Buna-N
- Viton
- Buna-N/Fluorosilicon
- Chemraz
- Kalrez

Bottom Loading Coupler Size
- 4"

Bottom Loading Coupler Options
- Drain Adaptor
- Weather Cap
- Parking Adaptor
- Counterweighted Hose Loader

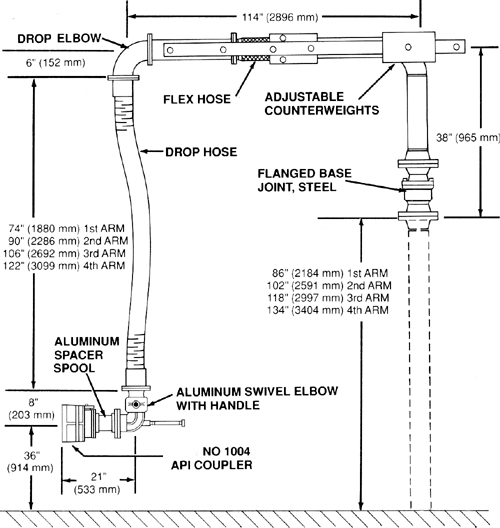

An example of a Counterweighted Hose Loader:

To get information or receive a quote fill out our Inquiry Form or email us at sales@cse-ipg.com. If you have problems with either method call us at 513-251-6791 direct, or 877-264-5033 toll-free.
